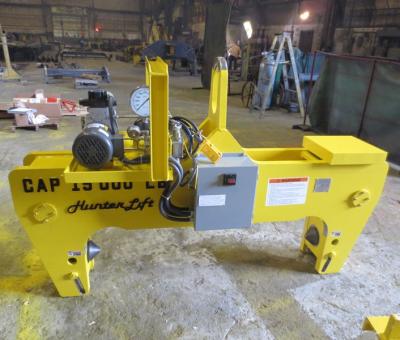

Hydraulic Ingot Rotator

Hydraulic Ingot Rotator
[click to enlarge]

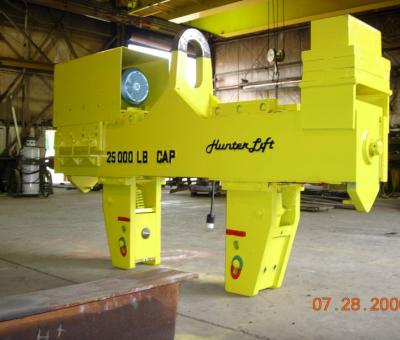

Hydraulic Ingot Rotator
  Hydraulic Ingot Rotator
[click to enlarge]
Hydraulic Ingot Rotator


The ingot rotator is designed to lift and rotate steel ingots from vertical to horizontal, and horizontal to vertical. This device derives its grip from both gravity and hydraulics, each of which creates enough grip to safely hold device. This design has been readily replacing the traditional automatic ingot rotator which uses only gravity for grip and typically drops 25% of the ingots being rotated. This design is also used for rotating slabs. It is used in the steel, titanium, and aluminum industries.
